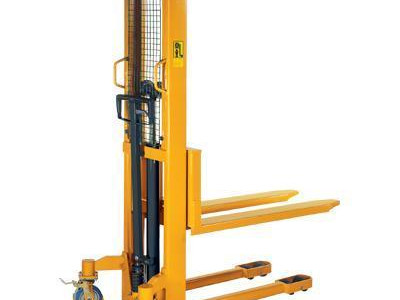

Stacker - Hydraulic. 1000kg Capacity

Stacker - Hydraulic. 1000kg Capacity
ebuy number: 7412
Region: UK

Designed for regular use, with strong welded steel frks for extra strength nd durability. Easy to manoeuvre and pass through almost any door, it is ideal for factory or warehouse use.
The lift carriage runs on ball bearing guide rollers.
Strong welded forks.
Lift per stroke: 24mm.
2 swivel castors with brakes 150mm dia.x55mm, 2 fork rollers 80mm dia.x75mm.

Fork length (mm) : 1150
O/A length (mm) : 1670
O/A height (mm) : 1965
Width over forks (mm) : 540
Fork spread (mm) : 220
Lifting height Min/Max (mm) : 88/1525
Turning radius (mm) : 1100
Max. load capacity (kg) : 1000
Weight (kg) : 235.
